ICP Monitoring

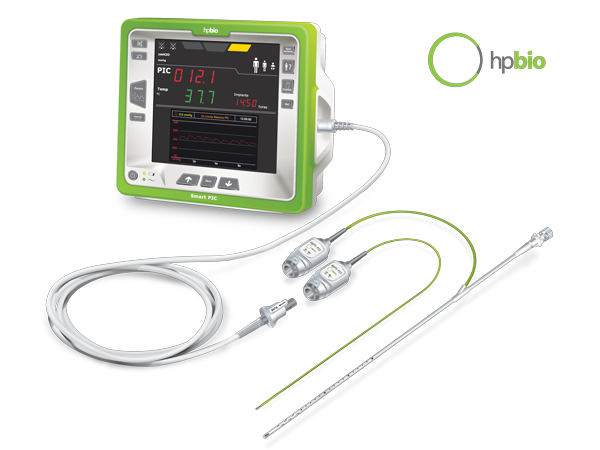

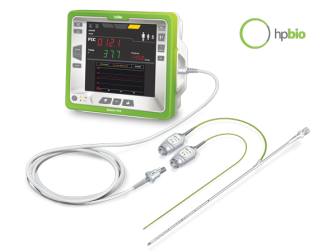

Smart Pic Pressure and Temperature Monitor

With Smart Pic Pressure and Temperature Monitor, monitoring of intracranial pressure and temperature will be available. It will report the intracranial temperature value, the intracranial pressure value and curve, generating alarms when the limits of physiological values are exceeded, and also stores these values for history and trend responses. The Smart Pic Monitor can be used with hpbio intracranial catheters, which are part applied to the patient. Smart Catheter and Smart Pic Monitor must be interconnected by the PIC Catheter Extension Cable.

Features of hpbio Smart Pic

Intracranial temperature and pressure monitoring

Plug and play. Intuitive operation with quick access buttons to easily set up the best view, without requiring zeroing or calibration process

Visual and audible alarm when pressure and temperature exceed critical limits

Extremely light and compact for easy handling and shipping

Historical trend of pressure and temperature values every 2 minutes, with storage capacity of the last 4 days

Intracranial Pressure and Temperature Monitoring Catheter

Intracranial Pressure and Temperature Monitoring Catheter HpPic provides continuous monitoring and measurement through pressure and temperature sensors placed on the distal tip, delivering direct and precise monitoring at required application site. The combination between the pressure and temperature sensors and signal treatment with microprocessor system guarantees highly precise records and reproduction of pressure curves throughout continuously monitoring.

Interface HpMIP

The monitoring catheter is used with the Interface Module HpMip allowing connection with several models of invasive pressure monitors available in the market, avoiding the need for specific monitors. The Interface Module HpMip has a zeroing button to atmospheric pressure and integrated extension cables to the monitoring catheter and the monitor. The Interface Module must be selected according to the model/brand of the pressure monitor available at the hospital for compatible connections.

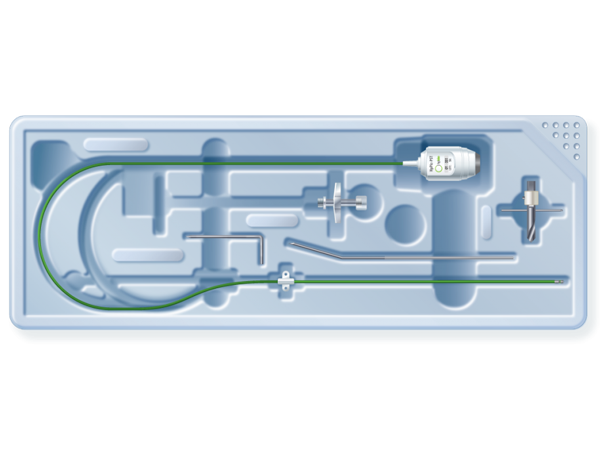

Catheter

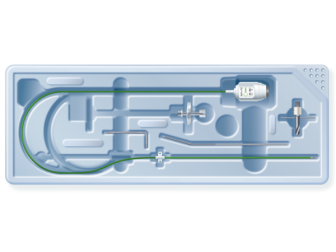

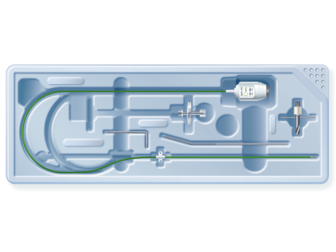

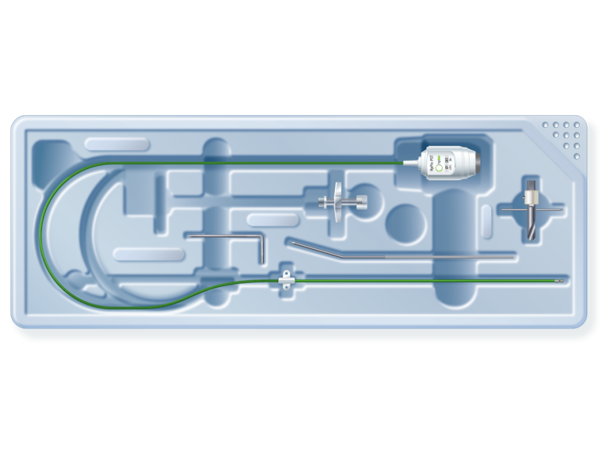

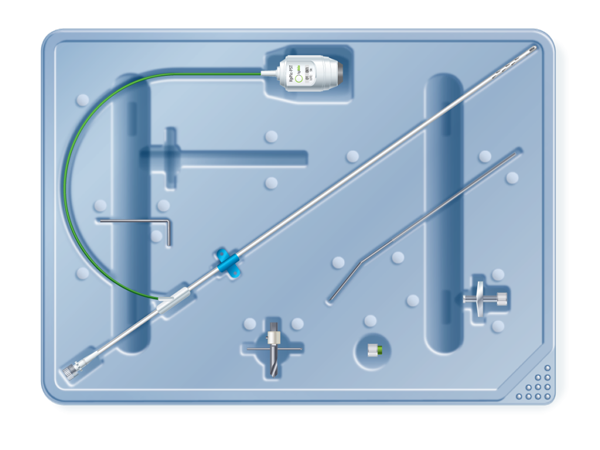

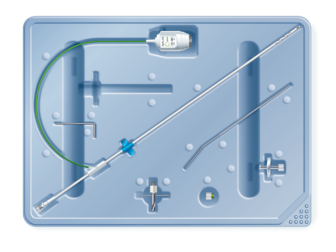

The catheter is internally built with wires for transferring data, bringing flexibility without any risk of rupture and functioning interruption. The disconnection and connection is possible without re-zeroing as the calibration parameters are kept stored. The catheter is available for PARENCHYMAL/SUBDURAL or VENTRICULAR measurement with three configurations of Introduction Kit.

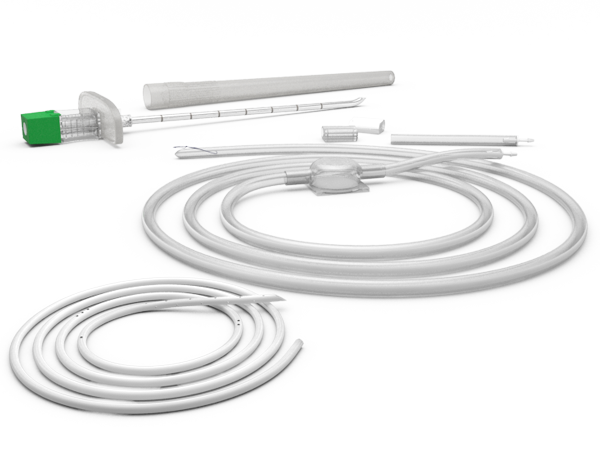

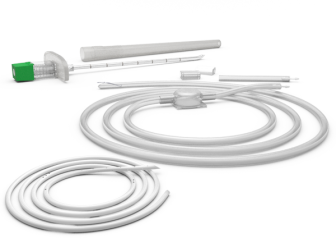

External Ventricular Drainage

External Ventricular Drainage system indicated to reduce and temporarily control the (ICP) pressure, by cerebrospinal fluid drainage. The system gathers all the components required for a secure and efficient drainage. The mobile burette allows better precision in pressure control and measurement of drained volume.
